🏗️ RAMU: Architecture

Explore the internal design of RAMU that powers real-time chat, code intelligence, flowchart rendering, and seamless team collaboration inside VS Code.

Frontend Architecture 🎨

VS Code WebView + HTML/CSS + JS

The RAMU interface is rendered as a WebView in VS Code using HTML, CSS, and JavaScript. It features a multi-tab collaborative UI for chat, file review, and graph rendering.

WebSockets + STOMP (SockJS)

Real-time chat and updates are managed over WebSockets using the STOMP protocol. Users can collaborate across sessions by connecting to specific Room IDs.

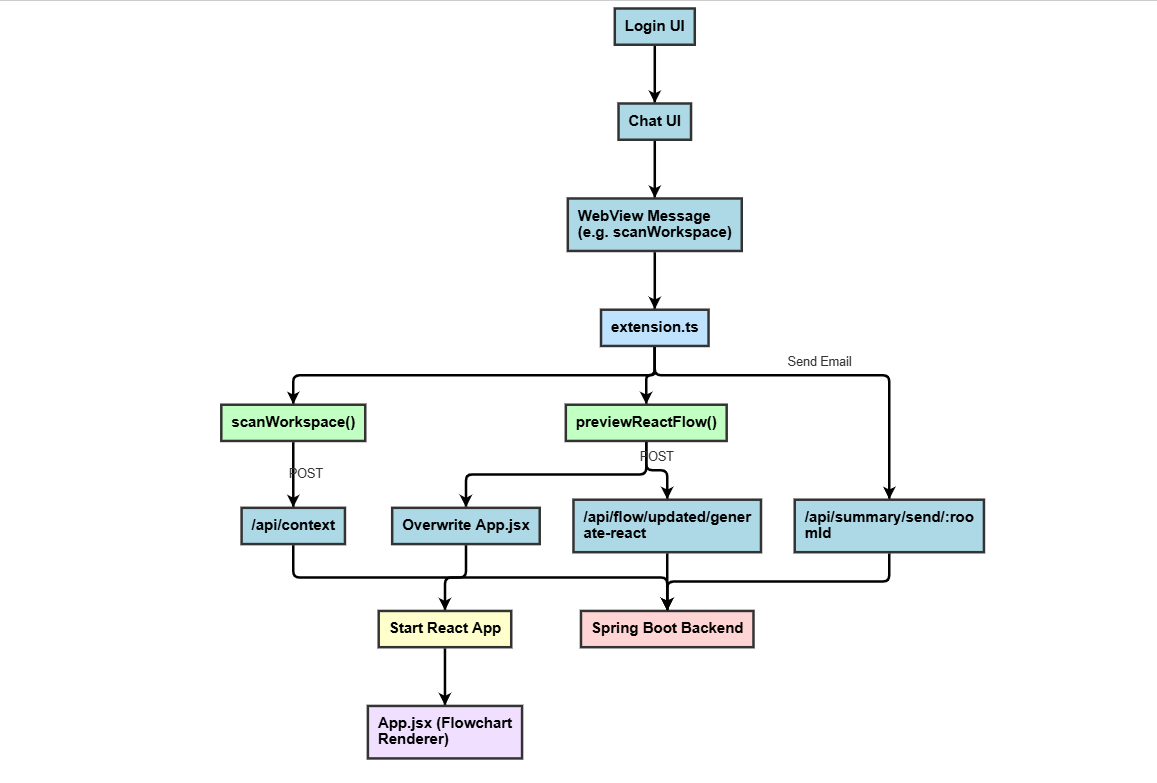

Frontend Architecture Diagram

Backend Architecture ⚙️

Spring Boot REST APIs

The backend is built using Spring Boot and exposes multiple APIs for code review, chat context, flowchart parsing, and email summarization.

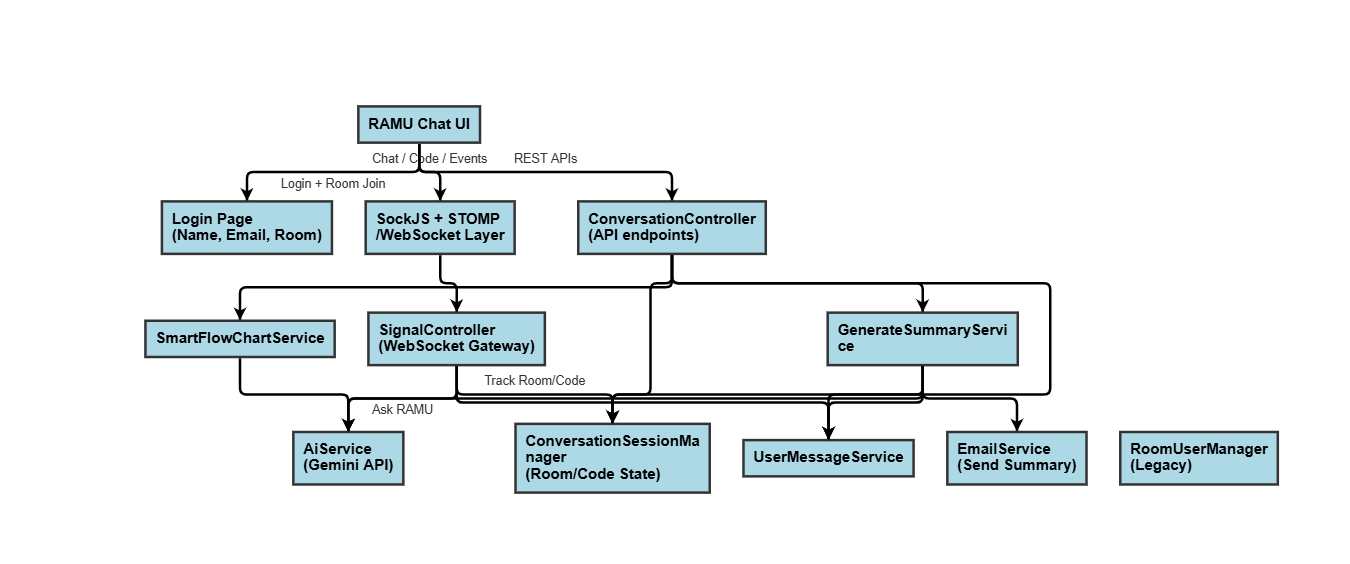

Backend Architecture Diagram
